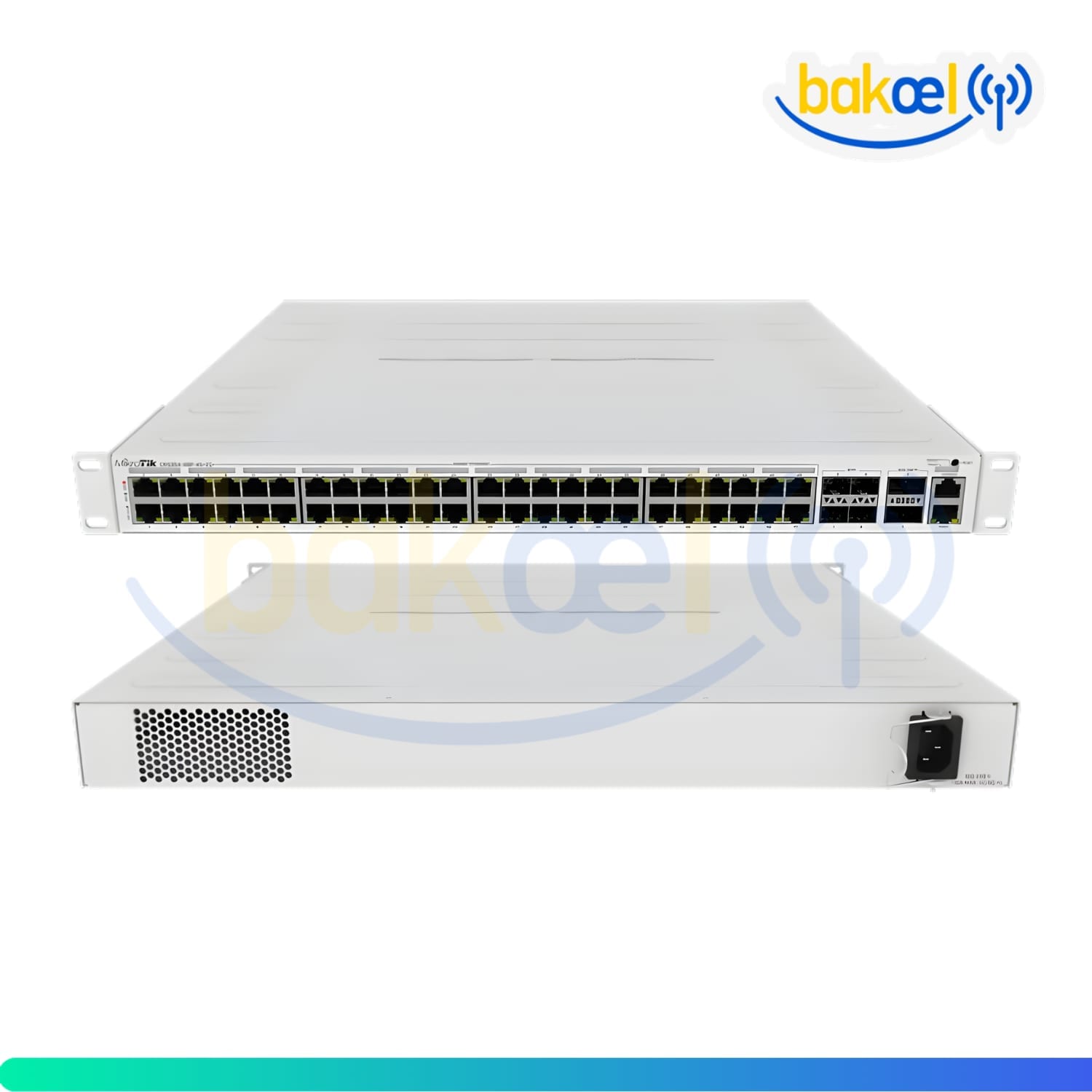

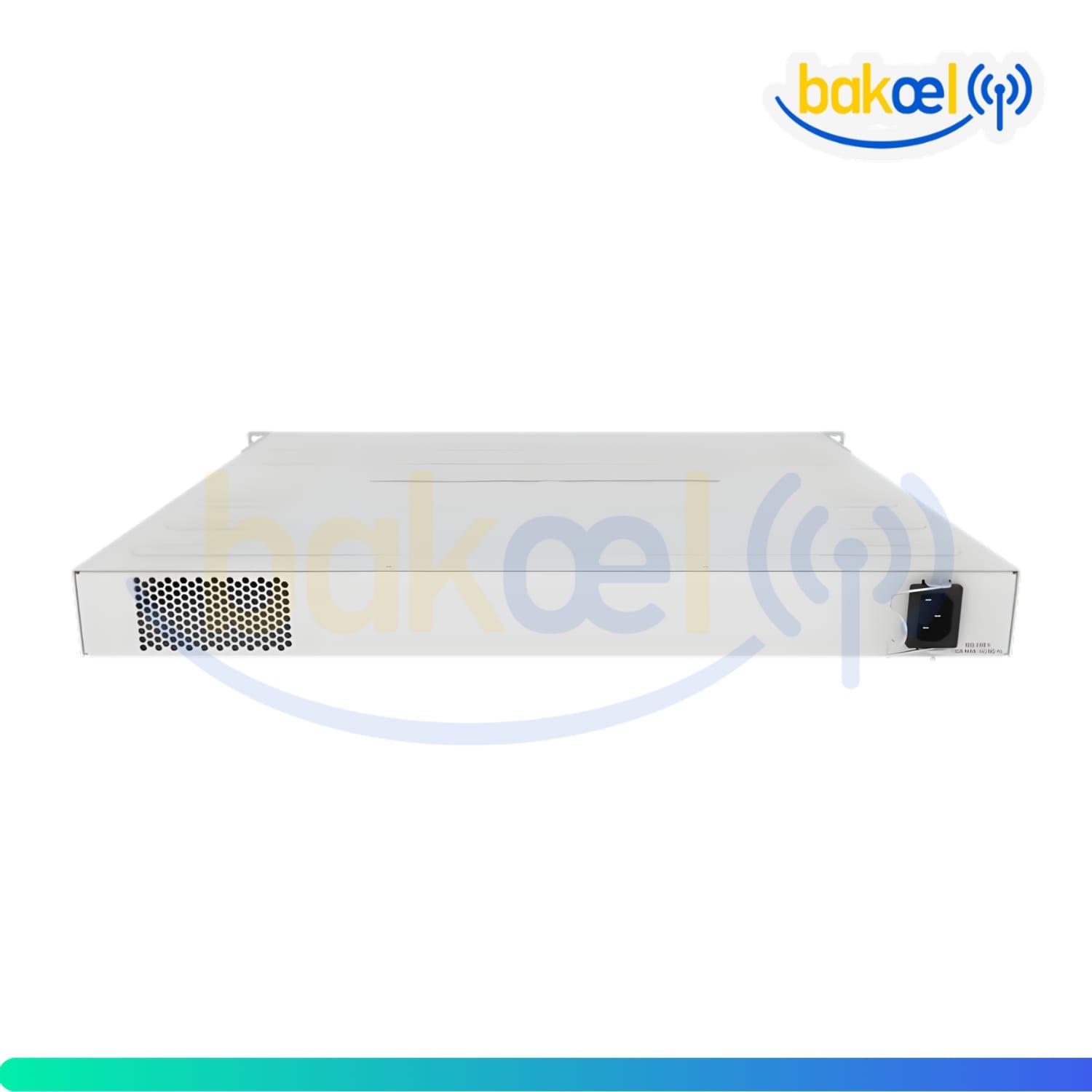

CRS354-48P-4S-2Q-RM

Specifications Mikrotik CRS354-48P-4S+2Q+RM DetailsProduct code CRS354-48P-4S+2Q+RMArchitecture MIPSBECPU QCA9531CPU core count 1CPU nominal frequency 650 MHzSwitch chip model 98DX3257Dimensions 443 x 382 x 44 mmRouterOS license 5Operating System RouterOS / SwitchOSSize of RAM 64 MBStorage size 16 MBStorage type FLASHMTBF Approximately 200'000 hours at 25CTested ambient temperature -20C to 60CPoweringDetailsNumber of AC inputs 1AC input range 100-240Max power consumption 800 WMax power consumption without attachments 85 WCooling type 4 fansPoE-outDetailsPoE-out ports Ether1-Ether48PoE out 802.3af/atMax out per port output (input 18-30 V) 1000 mAMax out per port output (input 30-57 V) 570 mATotal output current 27A at 26V OR 13.2A at 53VTotal output power 700WEthernetDetails10/100 Ethernet ports 110/100/1000 Ethernet ports 48FiberDetailsSFP+ ports 4Number of 40G QSFP+ ports 2PeripheralsDetailsSerial console port RJ45OtherDetailsCPU temperature monitor YesCurrent Monitor YesPCB temperature monitor YesVoltage Monitor YesRouterBoard CRS354-48P-4S+2Q+RM adalah switch layer 3 dengan 48 x 1G RJ45 port + PoE Function, 4 x 10G SFP+ ports dan 2 x 40G QSFP+. Switch ini menggunakan RouterOS (lisensi level 5) untuk menyesuaikan dengan kebutuhan dan menggunakan Rackmount Case.
